Q-G CORD PLUG CONNECTOR – A, AA AND QGP SERIES
FAX: 773 792-2129
CONNECTORS & RECEPTACLES
?
* Please visit the product pages on our website for the most up-to-date product information
Q-G ? CORD PLUG CONNECTORS (continued)

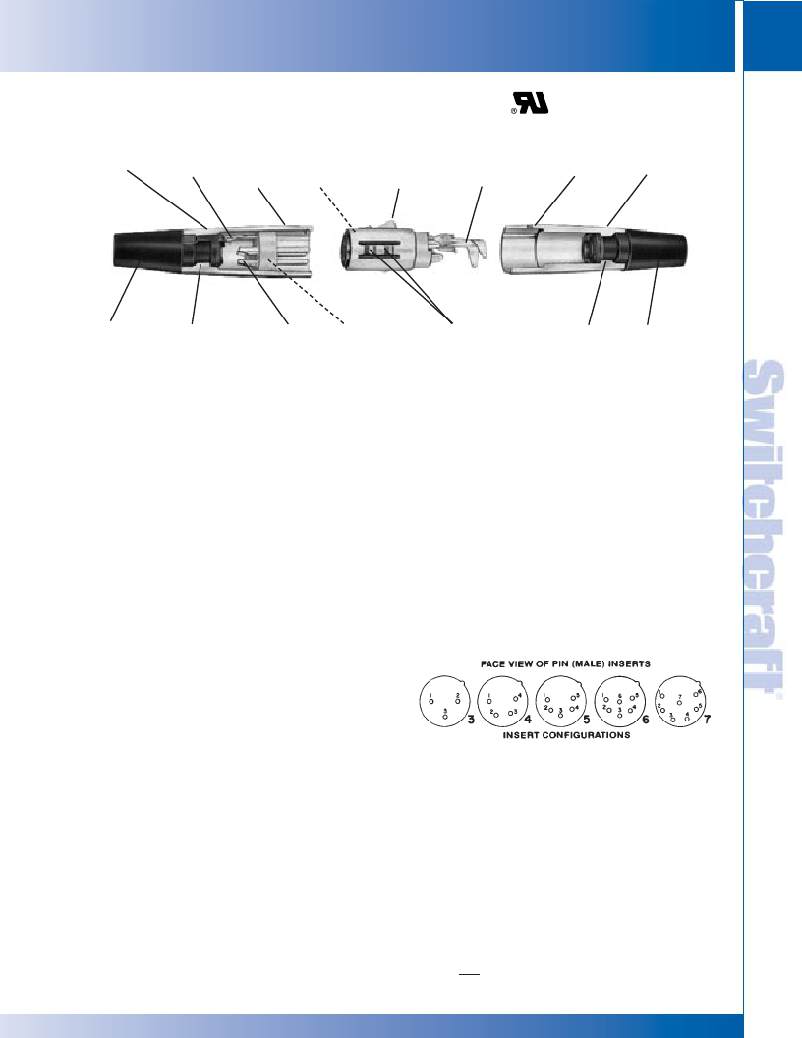

Q-G ? AUDIO CONNECTORS A, AA, AND QGP SERIES
3
Sleek, stream-
lined shell
Cable
clamp
Solid pins,
silver plated
Bifurcated high
performance
Durable
metal latch
Rugged cable
clamp to ground
Rugged
metal shell
Standard nickel
or black finish
for reliability
socket contacts
lock
(no screws)
Easy change
flex relief for
color coding
“No screws”
retention
system
Solder terminals
rotated for easy
access & soldering
Light green, high
performance insert
“Dual-point
shell grounding”
“No screws”
retention
system
Easy change
flex relief for
color coding
QGP connectors (3 contacts only) feature Vel-Tone ?
non-reflective finish, gray TPR flex relief and plated
pins/contacts for the most demanding applications.
Preferred by audio professionals the world over, Switchcraft ?
QG ? connectors feature unsurpassed durability and a choice
of finishes and contact platings. Features include:
? High performance inserts in traditional Switchcraft ? green
or black.
? Solder terminals rotated for easier access and soldering.
? All metal housing.
AA Series Only
? Rugged 1-piece cable clamp to relieve pulling and twisting
stresses on terminations.
? No Screws flex relief retention system.
? Integral bump shell grounding system.
SPECIFICATIONS
ELECTRICAL
Contact Resistance: 50 milliohm maximum, per pole.
Current Rating: 3 pole – 15A, 4 pole - 10A, 5 and 6
pole – 7.5A, 7 pole – 5A @ 125VAC.
Insulation Resistance: 1,000 M ? , minimum.
Dielectric Withstanding Voltage: 1,000 V (rms).
Capacitance: 2 pF between pins and 4 pF between pins
and shell, maximum (AA3M and AA3F).
MECHANICAL
Insertion/Withdrawal Forces: 7 pound maximum,
5 pound nominal, insertion; 7 pound maximum,
5 pound nominal, withdrawal.
Wire Size: #12 wire gauge solid; #14 wire gauge stranded
(3 contact). #14 wire gauge solid; #16 wire gauge stranded
(4 contact). #16 wire gauge solid; #18 wire gauge stranded
(5 and 6 contact). #18 wire gauge solid; #20 stranded
(7 contact). (Q-G and QGP).
MATERIAL
Q-G CONNECTORS (A AND AA SERIES)
Shell: Die-cast zinc. Satin nickel finish, black velvet.
Insert Insulation: Molded thermoplastic.
Socket Contacts: Silver-plated copper alloy tarnish-resistant;
bifurcated on 3-contact type. Gold is available
Pin Contacts: Silver-plated copper alloy. Resists tarnishing,
and provide excellent electrical conductivity. Gold is available.
Latchlock: High-strength die-cast zinc.
Latch Release: Steel, nickel-plated.
Latch Detent: Formed stainless steel.
Insert Screw: Stainless steel.
Flex Relief: TPR (thermoplastic rubber).
QGP CONNECTORS
Shell: Die-cast zinc, non-reflective gray Vel-Tone ? finish.
Socket Contacts: Gold-plated copper alloy
Pin Contact: Gold-plated copper alloy
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
